Safe-Quick Aluminium Scaffold Towers (RS51SQ & RS52SQ Series)
The Safe-Quick Guardrails’ method of assembly ensures that fixed guardrails and supports are always available before you reach the next platform.
Advantages of Rapid Systems Mobile Towers:
Safe-Quick Guardrails resulting in quicker assembly times and less parts required.
Foldable aluminium toe boards easily and quickly assembled.
Locking pins attached to the frames so they won’t get lost.
Easy-Lock stepless adjustable stabilizers.
Double-braked 200mm diameter adjustable castor wheels.
prevention of falls within the system as decks are spaced at intervals <2m.
The system complies with the stringent requirements of both Australian and European Standards.
-
RS51-SQ Scaffold Tower
Length 2.45m
Width 0.75m
Standard Platform Heights - 2.2m / 3.2m / 4.2m / 5.2m / 6.2m
Working Height is approximately 2m above platform height.
Max. Load per Platform - 225kg
Design Registration Number - WAS22606
-
RS52-SQ Scaffold Tower
Length 2.45m
Width 1.35m
Standard Platform Heights - 2.2m / 3.2m / 4.2m / 5.2m / 6.2m / 7.2m / 8.2m / 9.2m
Working Height is approximately 2m above platform height.
Max. Load per Platform - 225kg (450kg working deck)
Design Registration Number - WAS22607
With the innovative Safe-Quick® GuardRail, you install a guardrail before you even set foot on the platform. All-round safety at every level.

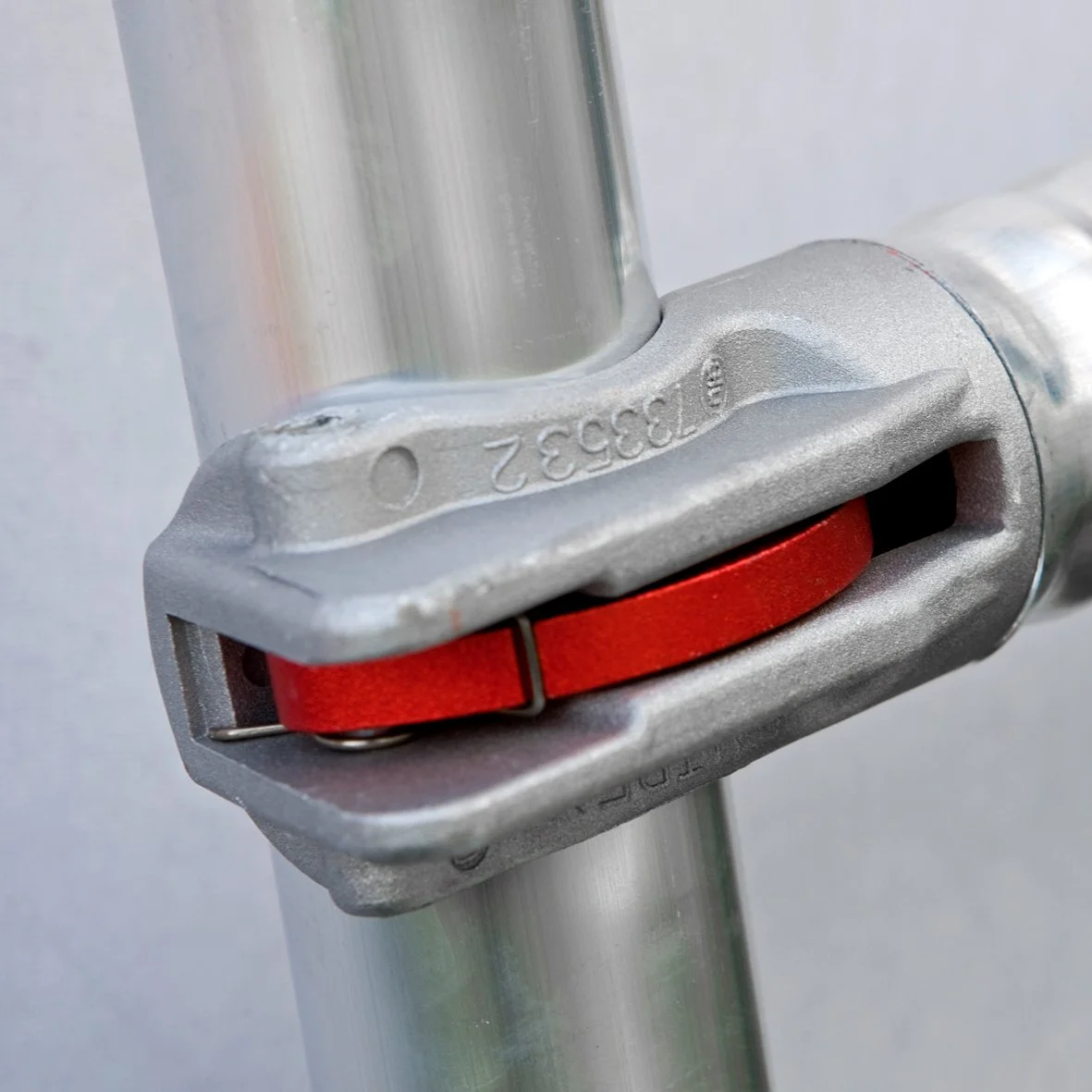

The clamped claw-brace connections make the RS TOWER super-strong. The connections are not welded and can take a knock or two
Platform lifting rungs are located in ideal positions allowing for safer manual handling
The innovative wind lock hook makes erecting and dismantling faster and easier. The wind security system is integrated into the unique design.
