Standard Aluminium Scaffold Towers (RS51 & RS52 Series)
Rapid Systems standard aluminium rolling scaffold towers are towers that you can build on, both indoors and outdoors. The system can be extended to varying platform heights and you can also connect the scaffolding to other products, such as an aluminium stages or an extension console. Available in both single plank and double plank widths, the scaffolding is strong and safe but also extremely flexible.
-
RS51 - Narrow Width Scaffold Tower
Length 2.45m
Width 0.75m
Standard Platform Heights - 2.2m / 3.2m / 4.2m / 5.2m / 6.2m
Working Height is approximately 2m above platform height.
Max. Load per Platform - 225kg
Design Registration Number - WAS22605
-
RS52 - Standard Width Scaffold Tower
Length 2.45m
Width 1.35m
Standard Platform Heights - 2.2m / 3.2m / 4.2m / 5.2m / 6.2m / 7.2m / 8.2m / 9.2m
Working Height is approximately 2m above platform height.
Max. Load per Platform - 225kg
Design Registration Number - WAS22604
-
Foldable aluminium toe boards for quick and easy assembly.
-

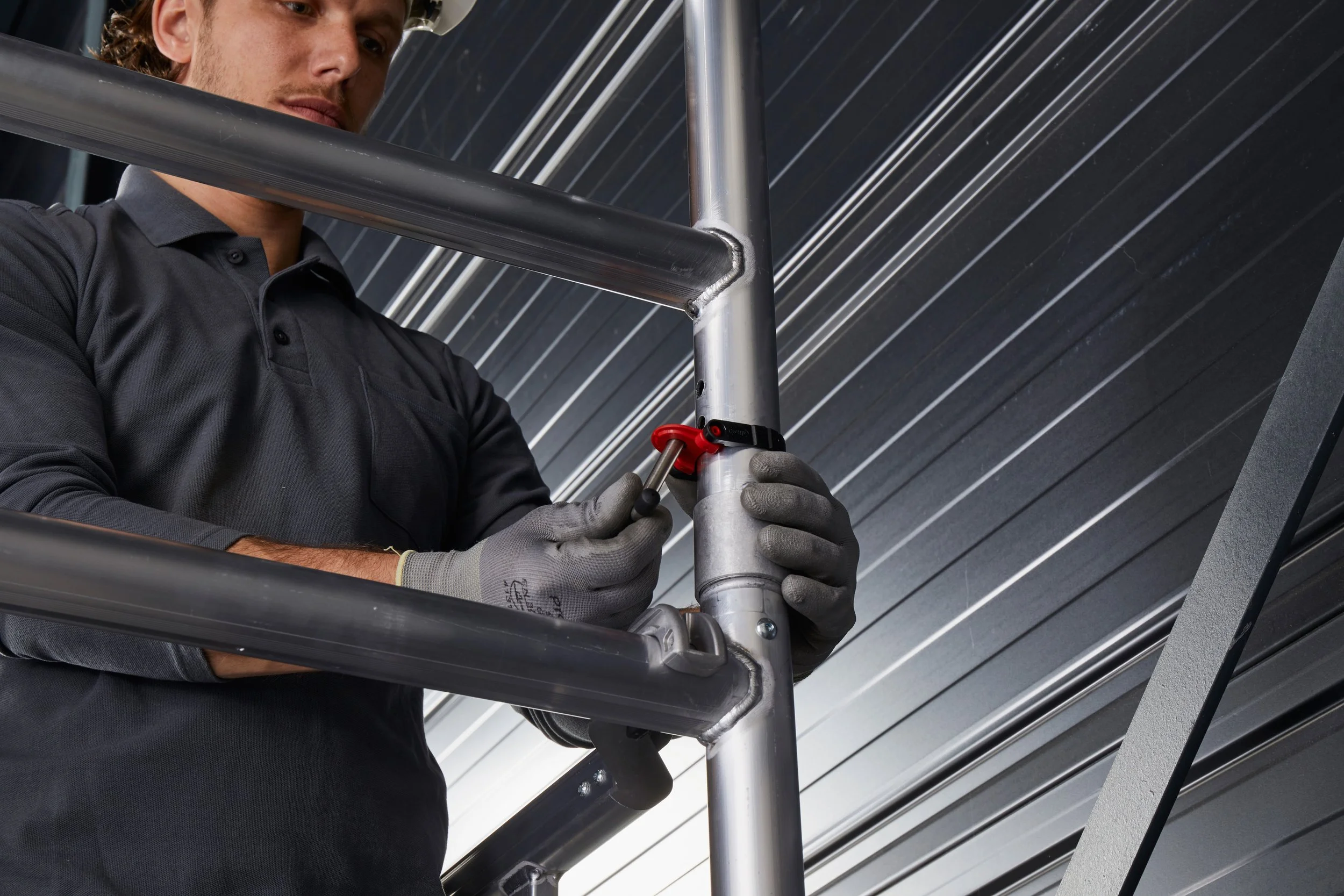

Locking pins are attached to the frames so they don’t get lost on site.
-
Telescopic Stabilisers with easy locking clamps.
-
Sturdy 200mm diameter castor wheels with 250mm adjustment.
